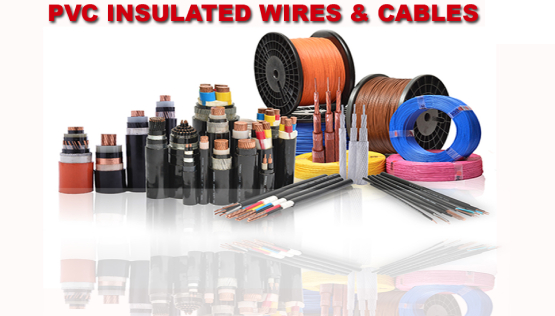

PVC Insulated Wire & Cables as per IS : 694-2010\FRLS / FR-LSH Cables as per IS: 694:2010
FRLS / FR-LSH Cables as per IS : 694:2010
HRFR Cables as Per IS : 694 : 2010
HFFR Cables as per IEC : 60332-1&3, IEC : 60754-1-2
Instrumentation Cables Both Screened / Shielded
FLEXIBLE HOUSE WIRING & INDUSTRIAL CABLES
Suncom Housing Wires in a trusted name today for reliable electrical wiring in homes, offices, multi-storied building, hospitals, hotels, schools, industries etc. and enjoy enviable reputation for its quality and reliability. Suncom wires are manufactured making use of best quality bright annealed electrolytic grade copper with conductivity of more than 120% to sae the energy consumption and for smooth flow of electricity. PVC used as an insulated is manufactured in house and has good dielectric and physical properties with high insulation resistance value that protects against any electrical fault. Suncom wires are manufactured with solid, standard and multi-standard conductor . we only manufacturer ROHS cables, which is 100% lead free.
Fire Retardant (FR) : Our normal wires are fire retardant. They have high oxygen and temperature index, which helps in restricting the spread of fire even at high temperature.
Fire Retardant Low Smoke (FRLS) : Apart from having high oxygen and temperature index, our FRLS wires also have low smoke and toxic gases generation properties which helps in easy evacuation and rescue operation in case of fire and are ideal for use in places of high human density.
Heat Resistant (105 °C) : Besides being fire retardant, our heat resistant (105°C) wires have properties to withstand the excess heat generated in the wire due to low voltage. These wires can withstand the conductor temperature up to 105 °C and are suited for areas where there is wide voltage fluctuations.
Halogen Free Flame retardant (HFFR) : Based on poly-olefinic thermoplastic compound, our zero halogen flame retardant (HFFR) wires have properties to emit smoke free, nontoxic, non-corrosive gases in case of fire, besides other fire retarding properties. They are ideal for use in public places where risk of human lives and property are of prime concern.
Consistency : 100% wires pass through on line spark tester to withstand high voltage stresses of 9000 volts to give consistent quality, free of foreign particles throughout. Volts to give consistent quality, free of foreign particles throughout.
Current Carrying Capacity: Due to low conductor resistance, current carrying capacity is more.
Suncom PVC Insulated unsheathed single core wire with high conductivity plain annealed electrolytic
grade copper conductor 450/750 volts grade confirming to IS:694 / 2010 and ISI marked.
|
Nominal Cross Sectional area of the conductor |
Nos nominal dia. Of strand |
Nominal Thickness of insulation |
Approx. Overall Dia. |
Max. Conductor Resistance |
Current Rating |
|
Sq.mm |
No./mm |
mm |
mm |
Ω/km at 20°C |
Amps. |
|
0.5 |
16/20 |
0.6 |
2.4 |
39.0 |
4 |
|
0.75 |
24/20 |
0.6 |
2.6 |
26.0 |
7 |
|
1.0 |
32/10 |
0.6 |
2.7 |
19.5 |
12 |
|
1.5 |
30/25* |
0.6 |
3.1 |
13.3 |
16 |
|
2.5 |
50/25* |
0.7 |
3.8 |
7.98 |
22 |
|
4 |
56/30 |
0.8 |
4.3 |
4.95 |
29 |
|
6 |
84/30 |
0.8 |
5.2 |
3.30 |
37 |
|
10 |
80/40 |
1.0 |
6.3 |
1.91 |
51 |
|
16 |
126/40 |
1.0 |
8.0 |
1.21 |
68 |
|
25 |
196/40 |
1.2 |
9.7 |
0.780 |
86 |
|
35 |
276/40 |
1.2 |
11.0 |
0.554 |
110 |
|
50 |
396/40 |
1.4 |
13.2 |
0.386 |
145 |
|
70 |
360/50 |
1.4 |
15.5 |
0.272 |
215 |
|
95 |
475/50 |
1.6 |
18.0 |
0.206 |
260 |
|
120 |
608/50 |
1.6 |
19.5 |
0.161 |
305 |
|
150 |
756/50 |
1.8 |
22.0 |
0.129 |
355 |
|
185 |
925/50 |
2.0 |
24.5 |
0.106 |
415 |
|
240 |
1221/50 |
2.2 |
28.0 |
0.080 |
500 |
Suncom PVC Insulated and PVC Sheathed Single and multi-core flexible cable with high conductivity plain
annealed electrolytic grade copper conductor 450/750 volts confirming to IS : 694/2010 and ISI marked.
|
Nominal Cross Sectional Area of the Conductor |
Nos. Nominal Dia. Of Strand |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath and maximum overall dia. (mm) |
|||||||
|
Single Core |
Two Core |
Three Core |
Four Core |
|||||||
|
Sq.mm |
No. / mm |
mm |
Sheath Thickness |
O.D (Max.) |
Sheath Thickness |
O.D (Max) |
Sheath Thickness |
O.D (Max) |
Sheath Thickness |
O.D (Max) |
|
0.5 |
16/20 |
0.6 |
0.9 |
4.5 |
0.9 |
7.2 |
0.9 |
7.6 |
0.9 |
8.2 |
|
0.75 |
24/ 20 |
0.6 |
0.9 |
4.7 |
0.9 |
7.8 |
0.9 |
8.2 |
0.9 |
8.8 |
|
1.0 |
32/ 20 |
0.8 |
0.9 |
4.9 |
0.9 |
8.0 |
0.9 |
8.6 |
0.9 |
9.4 |
|
1.5 |
30/25 |
0.6 |
0.9 |
5.4 |
0.9 |
8.6 |
0.9 |
9.2 |
1.0 |
10.5 |
|
2.5 |
50/ 25* |
0.7 |
1.0 |
6.2 |
1.0 |
10.5 |
1.0 |
11 |
1.0 |
12.0 |
|
4.0 |
56/ 30 |
0.8 |
1.0 |
7.0 |
1.0 |
12.0 |
1.0 |
12.5 |
1.0 |
14.0 |
XLPE-PVC flat cables are manufactured with rigid manufacturing controls to sustain complete immersion in water and protection against rain water: The conductors are uniformly drawn from high purity electrolytic grade copper on high precision drawing machines with superb flexibility. Compactly bunched to offer uniform resistance across all conductors extruded on dual screw extrusion machine with inline monitoring of cable diameter and high voltage spark testing.
|
Product Type |
Specifications |
|
XLPE/PVC |
IS 8130 class 5 / EN 60228. XLPE Insulation & PVC ST-2 (IS5831) sheath |
|
Conductor Construction |
Max. Conductor Resistance at 200C (Ω/km) |
Nominal Insulation Thickness (mm) |
Nominal Sheath. Thickness (mm) |
Approx. Overall Dimensions (W x T) (mm) +/- 0.5mm |
Current Carrying Capacity (Amp.) |
|
|
Nominal Cross Sectional Area (Sq.mm) |
No. of Strands/Max. Strands. Dia. (mm) |
|||||
|
1 |
14/0.3 |
18.1 |
0.7 |
1.0 |
10.6x5.2 |
12 |
|
1.5 |
22/0.3 |
12.1 |
0.7 |
1.0 |
11.6x5.5 |
20 |
|
2.5 |
36/0.3 |
7.41 |
0.7 |
1.1 |
13.1x6.2 |
30 |
|
4 |
56/0.3 |
4.95 |
0.8 |
1.1 |
15.0x6.8 |
37 |
|
6 |
84/0.3 |
3.3 |
0.8 |
1.2 |
17.2x7.7 |
46 |
|
10 |
140/0.3 |
1.91 |
0.8 |
1.3 |
20.2x8.8 |
66 |
|
16 |
126/0.1 |
1.21 |
0.8 |
1.4 |
23.6x10.0 |
85 |
|
28 |
196/0.4 |
0.78 |
1.0 |
1.5 |
28.9x12.0 |
113 |
|
35 |
276/0.4 |
0.554 |
1.1 |
1.6 |
32.7x13.4 |
139 |
|
50 |
396/0.4 |
0.386 |
1.2 |
1.7 |
38.7x155 |
156 |
Current rating conversion factor for deviating ambient temperature
|
Ambient Temperature (°C) |
25 |
30 |
35 |
40 |
45 |
50 |
|
Factor |
1.18 |
1.12 |
1.06 |
1 |
0.94 |
0.88 |
Max. DC Resistance - IS 8130/EN 60228
MAX. DC Conductor Resistance as per IS 8130/En 60228 for conductor made of soft annealed copper.
|
Nominal Cross Section (mm2) |
Max. DC Conductor Resistance at 20°C (Ω/km) |
|||
|
Tin Coaled Copper Conductor |
Plain Copper Conductor |
|||
|
0.5 |
36.7 |
40.1 |
36 |
39.0 |
|
0.75 |
24.8 |
26.7 |
24.5 |
26.0 |
|
1 |
18.2 |
20.0 |
18.1 |
19.5 |
|
1.5 |
12.2 |
13.7 |
12.1 |
13.3 |
|
2.5 |
7.56 |
2.21 |
7.41 |
7.98 |
|
4 |
4.70 |
5.09 |
4.61 |
4.95 |
|
6 |
3.11 |
3.39 |
3.08 |
3.30 |
|
10 |
1.84 |
1.95 |
1.83 |
1.91 |
|
16 |
1.16 |
1.24 |
1.15 |
1.21 |
|
25 |
0.734 |
0.795 |
0.727 |
0.780 |
|
35 |
0.529 |
0.565 |
0.524 |
0.554 |
|
50 |
0.391 |
0.393 |
0.387 |
0.386 |
|
70 |
0.270 |
0.277 |
0.268 |
0.272 |
|
95 |
0.195 |
0.210 |
0.193 |
0.206 |
